TYKK Series High Voltage Super High Efficiency Three Phase Permanent Magnet Synchronous Motor (6KV H355-1000)

Short Description:

The efficiency index of this series of products reaches the Grade 1 standard of GB30254-2013 “High-voltage Three-phase Cage Asynchronous Motor Functional Efficiency Limiting Value and Energy Efficiency Grade”, Achieve the international advanced level of similar products.


Product Detail

Product description

The basic series of products are TYKK air-air cooled, ingress protection grade IP55, class F insulation, S1 working duty, according to customer needs, other protection grade and cooling method can be provided.
The rated frequency is 50Hz, the rated voltage is 6kV and the product is self-starting and can also be frequency started.
The series has a higher efficiency and wider economic operating range than asynchronous motors of the same specification in the load range of 25% to 120%, with significant energy-saving effects. The temperature rise of the motor is low, 40-60K under rated load.
This series of products can completely replace YYKK, YKS and other series of high-voltage asynchronous motors. We are permanent magnet motor manufacturers can also according to user needs, to improve the power density, special design.

Product features

1. High motor power factor. high grid quality factor. no need to add power factor compensator. the capacity of substation equipment can be fully utilised;
2. permanent magnet motor is permanent magnet excitation. synchronous operation. there is no speed pulsation. During dragging fans. pumps and other loads do not increase the pipeline resistance loss;
3. according to the needs of permanent magnet motor can be designed into high starting torque (more than 3 times). high overload capacity. so as to solve the phenomenon of "big horse pulling small cart";
4. the reactive current of ordinary asynchronous motors is generally about 0.5 to 0.7 times the rated current. Mingteng permanent magnet synchronous motors do not require excitation current. the difference between reactive current permanent magnet motors and asynchronous motors is about 50%. the actual running current is about 15% lower than that of asynchronous motors;
5. the motor can be designed to start directly. the shape and installation size is the same as the current widely used asynchronous motor. can fully replace the asynchronous motor.

Product Applications

The series 3 phase permanent magnet motos are widely used in various equipments such as fans, pumps, compressors belt machines and refining machines in electric power, water conservancy,  petroleum, chemical industry, building materials, metallurgy, mining and other fields.

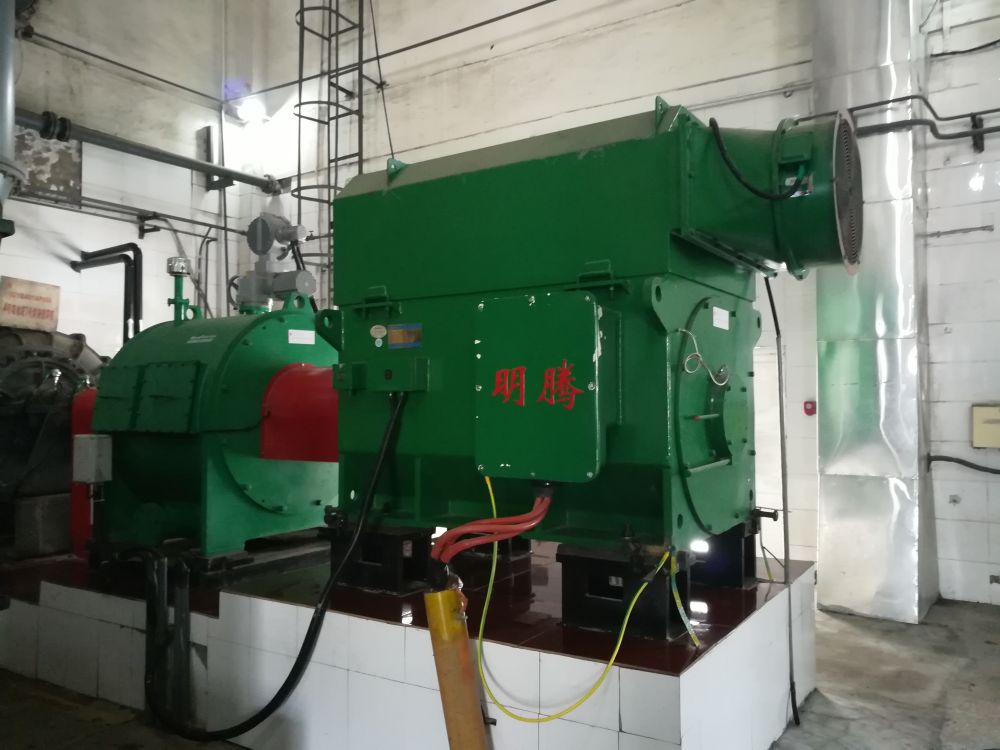

3 phase ac pmsm

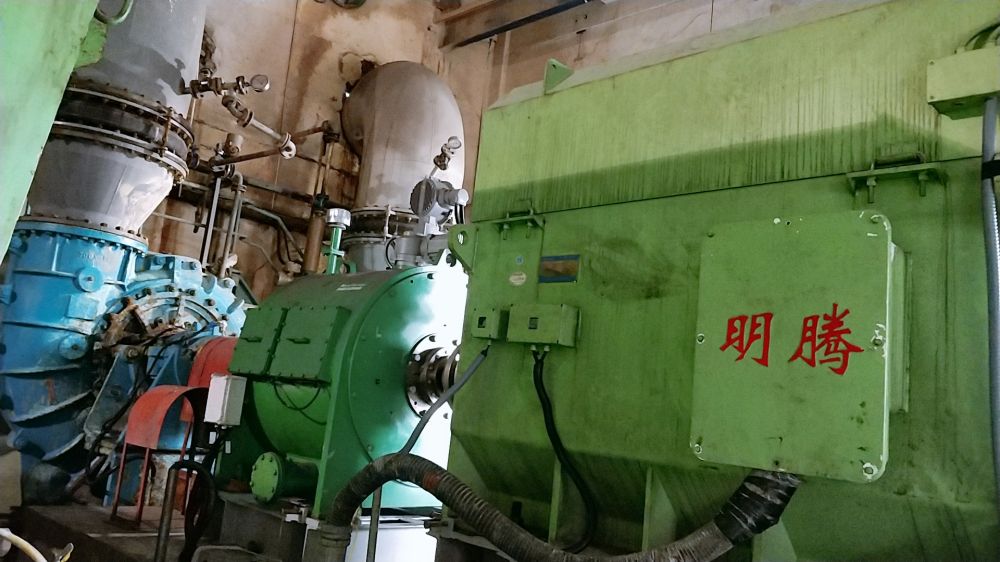

application (4)

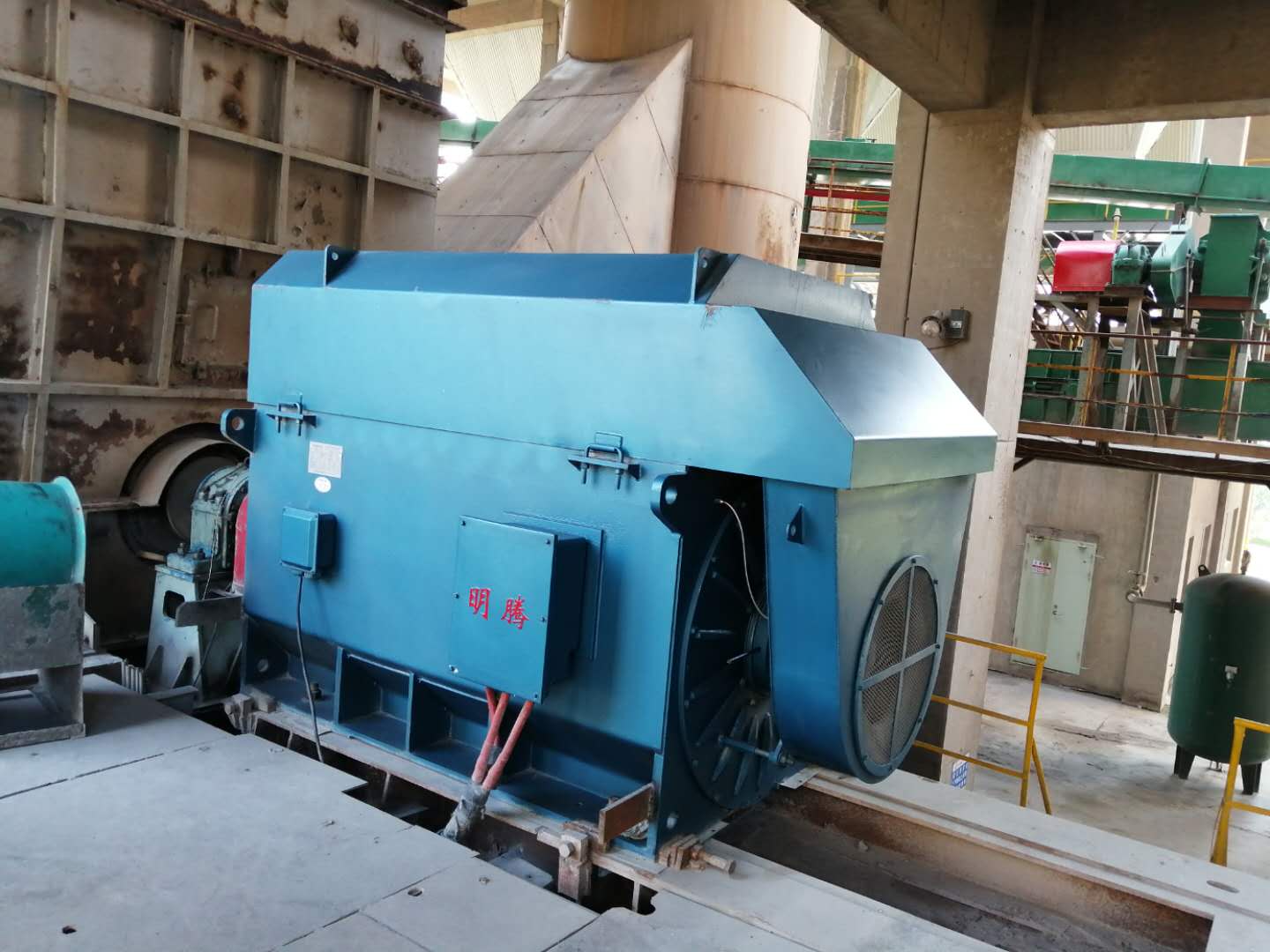

pmsm

FAQ

What are the advantages and disadvantages of ultra-high-efficiency permanent magnet motors compared with YE3/YE4/YE5 asynchronous motors?

1.Asynchronous motor quality level is not consistent, efficiency to meet the standard is doubtful
2.Permanent magnet electric motor payback periods are all within 1 year
3.YE5 asynchronous motors have no mature series of products, and the price of standard products is not lower than that of permanent magnet motors.
The efficiency of the Mingteng permanent magnet motor can reach IE5 energy efficiency. If there is a need for renovation or replacement, it is recommended to complete it in one step.

What permanent magnet motors does our company specialize in?
1.Low-voltage ultra-high-efficiency three-phase permanent magnet synchronous motors: TYCX, TYPCX series motors;
2.High-voltage super-efficient three-phase permanent magnet synchronous motors: TYKK, TYPKK series motors;
3.Low-speed direct-drive three-phase permanent magnet synchronous motor: TYZD series motor.
4.Flame-proof three-phase permanent magnet synchronous motors: TYB, TYBCX, TYBP, TYBD series motors.
5.Electric drums;
6.Integrated machine.

Product Parameter

  • download_icon

    TYKK 6KV

Mounting Dimension

  • download_icon

    TYKK 6KV

Outline

  • download_icon

    TYKK 6KV
