TYPCX Series Low Voltage Super High Efficiency Three-phase Permanent Magnet Synchronous Motor (380V H90-355)

Short Description:

The efficiency index of this series of products reaches the level 1 standard of GB30253-2013 “Energy Efficiency Limiting Value and Energy Efficiency Grades of Permanent Magnet Synchronous Motors” and GB/27744-2021 “Technical Conditions and Energy Efficiency Grading of Asynchronous Starting Permanent Magnet Synchronous Motors (Frame range. 80-355)”, Achieve the international advanced level of similar products. .It can also be designed as a pmsm generator.


Product Detail

Product description

This pmsm series of products was designed with independent fan structure, forced air cooling, ingress protection grade IP55, class F insulation, S1 working duty.
The rated frequency is 50Hz, the rated voltage is 380V, and is powered by an inverter. In the load range of 25%-120%, they have a higher efficiency and wider economic operating range than asynchronous motors of the same size, with significant energy-saving effects. The temperature rise of the motor is low, 30-50K at rated load.
This series of magnet motors can completely replace Y2, Y3, YE2 and other series of low-voltage asynchronous motors, and can also be customized according to customer needs to improve power density, special design, and design different cooling methods and voltage levels,magnetic generator is also accepted.

1

21

3

Product features

1, high motor power factor, high quality factor of the grid, no need to add power factor compensator, the capacity of the substation equipment can be fully utilised;
2, permanent magnet motor is permanent magnet excitation, synchronous operation, there is no speed pulsation. During dragging fans, pumps and other loads do not increase the pipeline resistance loss;
3, according to the needs of permanent magnet motor can be designed into high starting torque (more than 3 times), high overload capacity, so as to solve the phenomenon of "big horse pulling small cart";
4, the reactive current of ordinary asynchronous motors is generally about 0.5 to 0.7 times the rated current, Mingteng permanent magnet synchronous motors do not require excitation current, the difference between reactive current permanent magnet motors and asynchronous motors is about 50%, the actual running current is about 15% lower than that of asynchronous motors;
5, the motor can be designed to start directly, the shape and installation size is the same as the current widely used asynchronous motor, can fully replace the asynchronous motor.

11

Permanent magnet motor efficiency map

341

Asynchronous motor efficiency map

Product Applications

The series products are widely used in various equipments such as fans, pumps, compressors and belt machines in the fields of electric power, petroleum, metallurgy, textile and building materials.

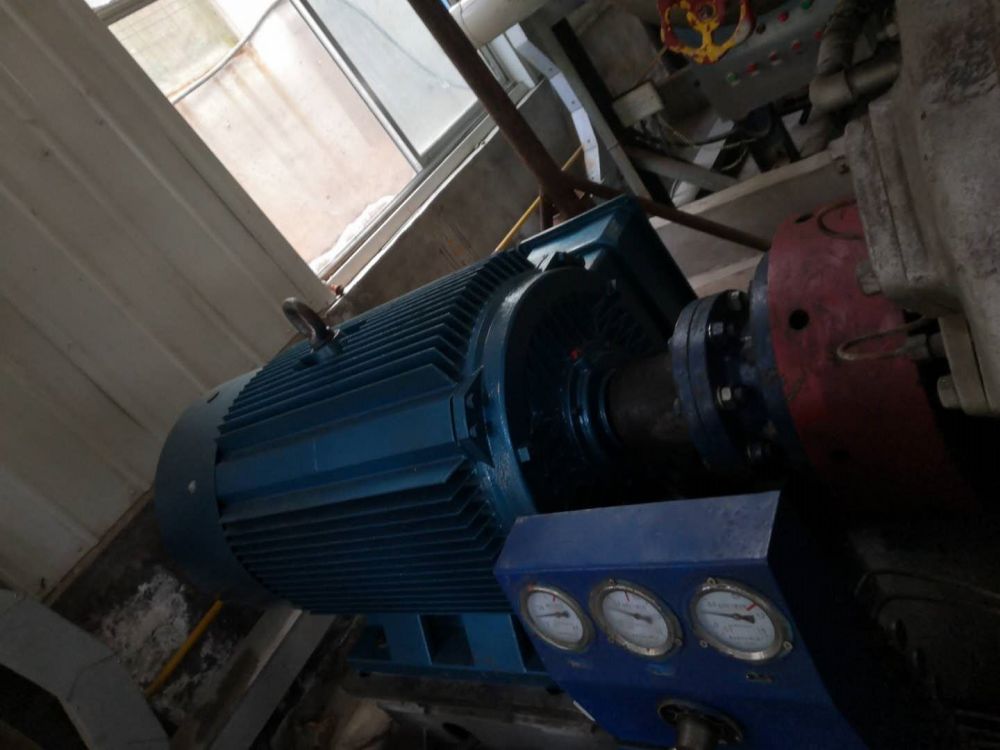

typcx (8)

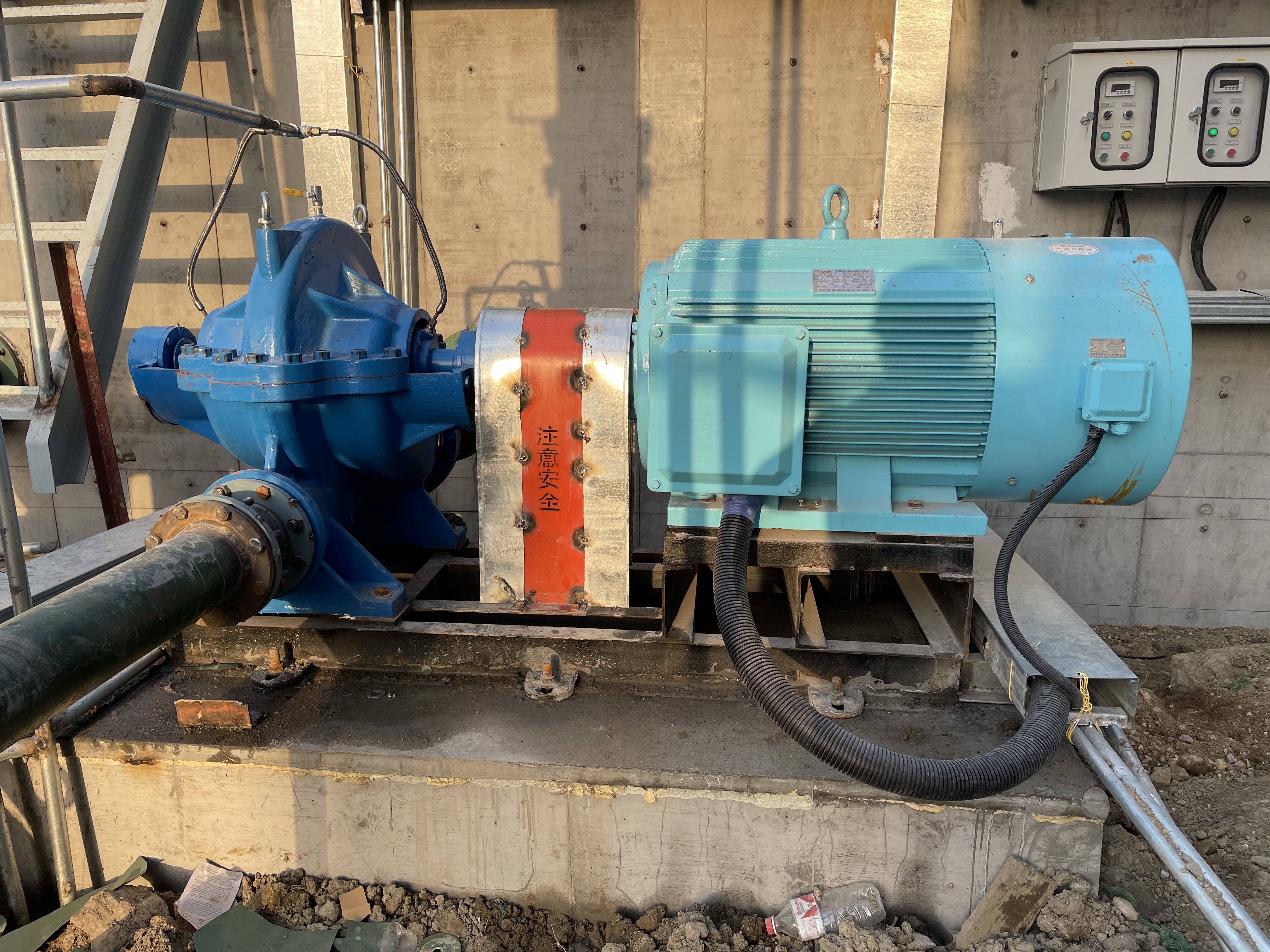

permanent magnet synchronous motor

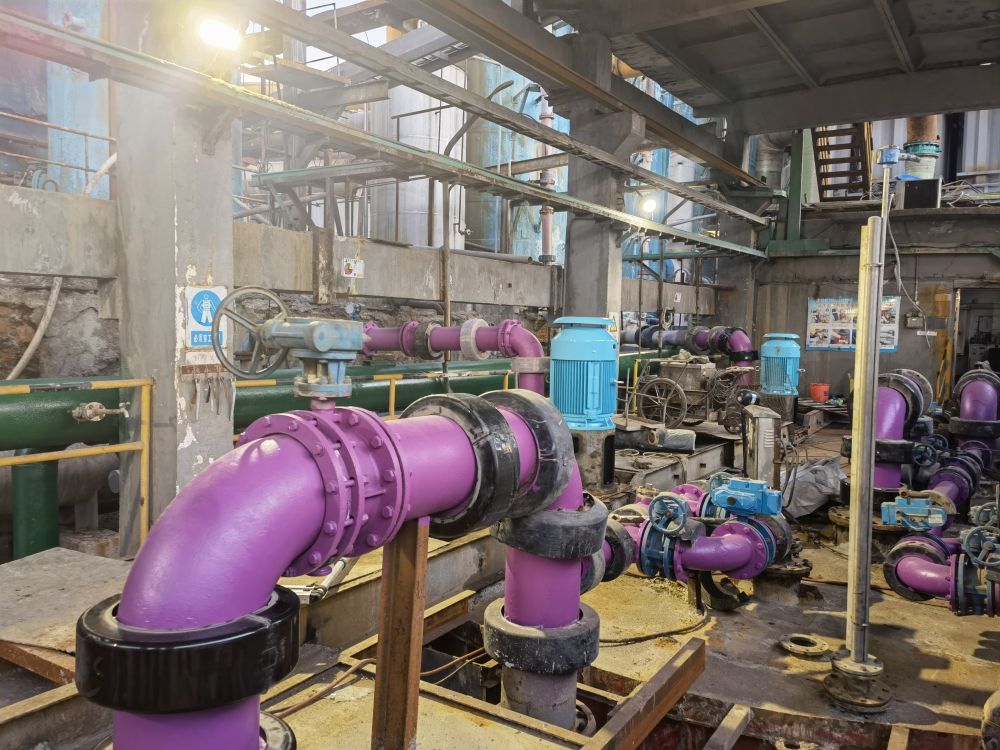

typcx (6)

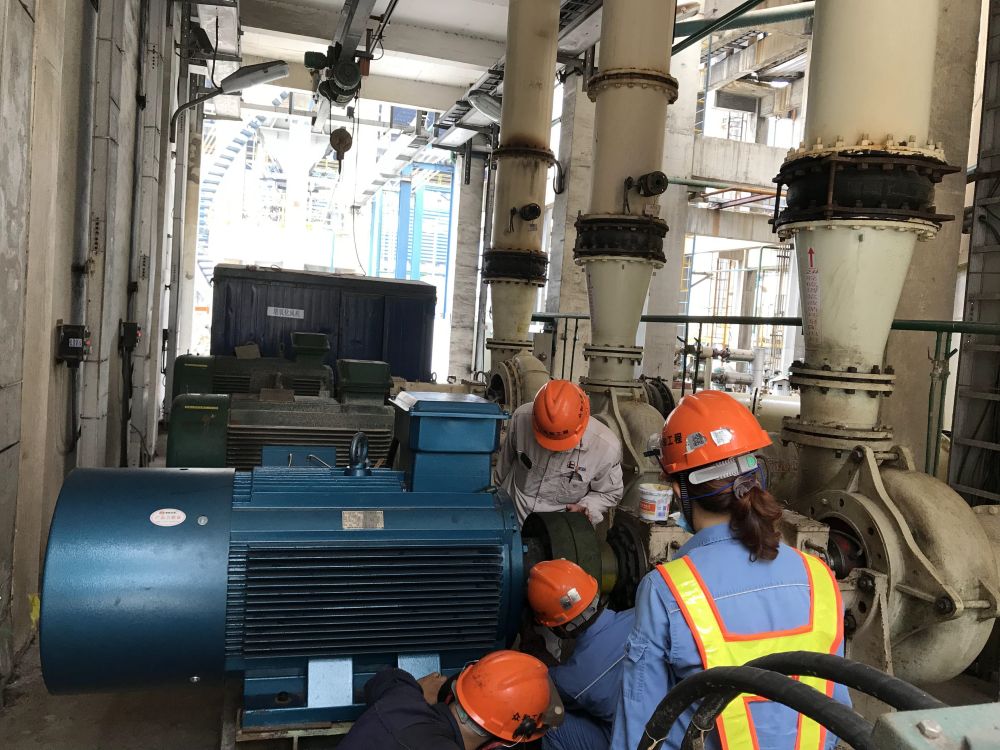

typcx (3)

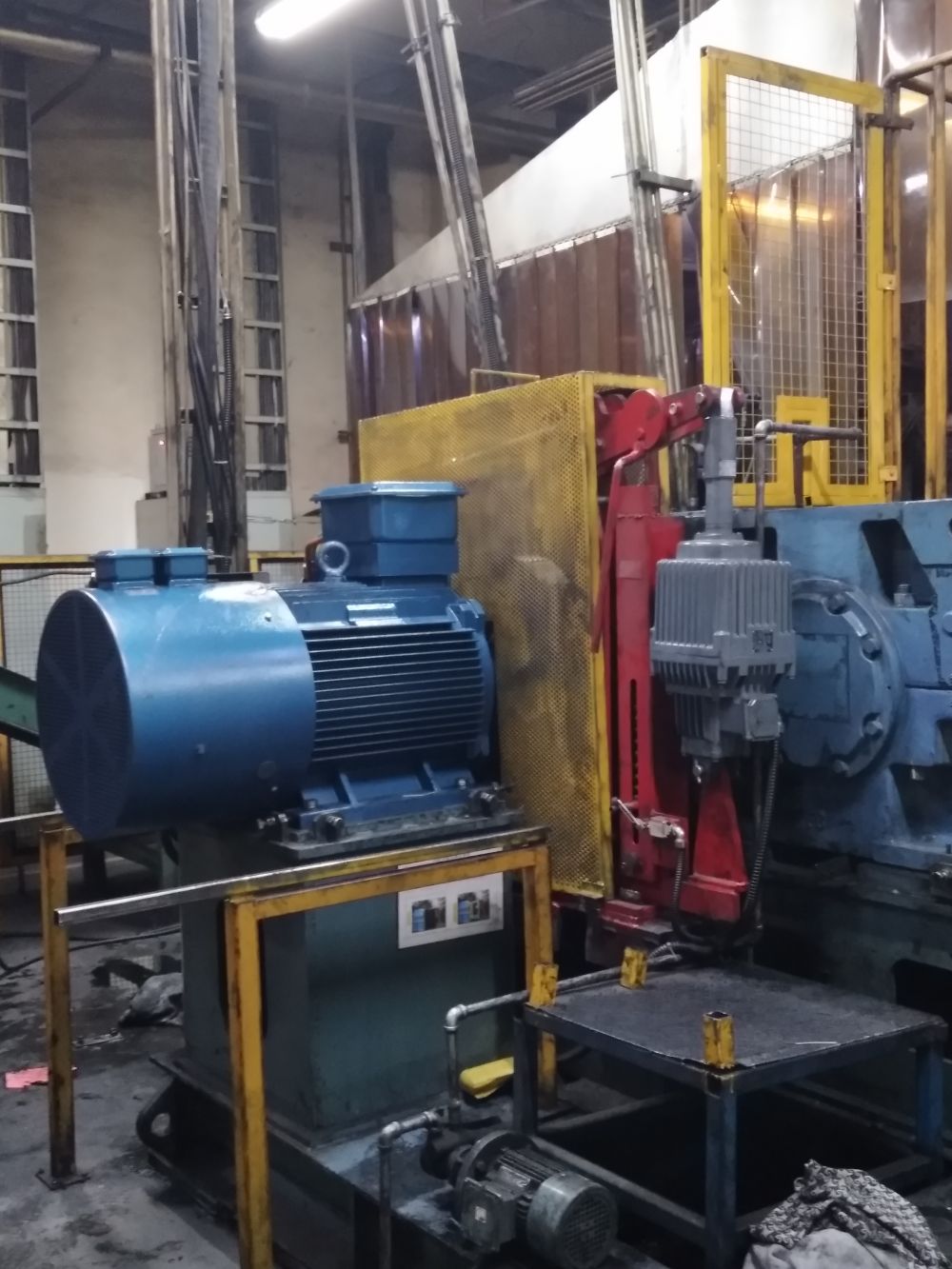

typcx (4)

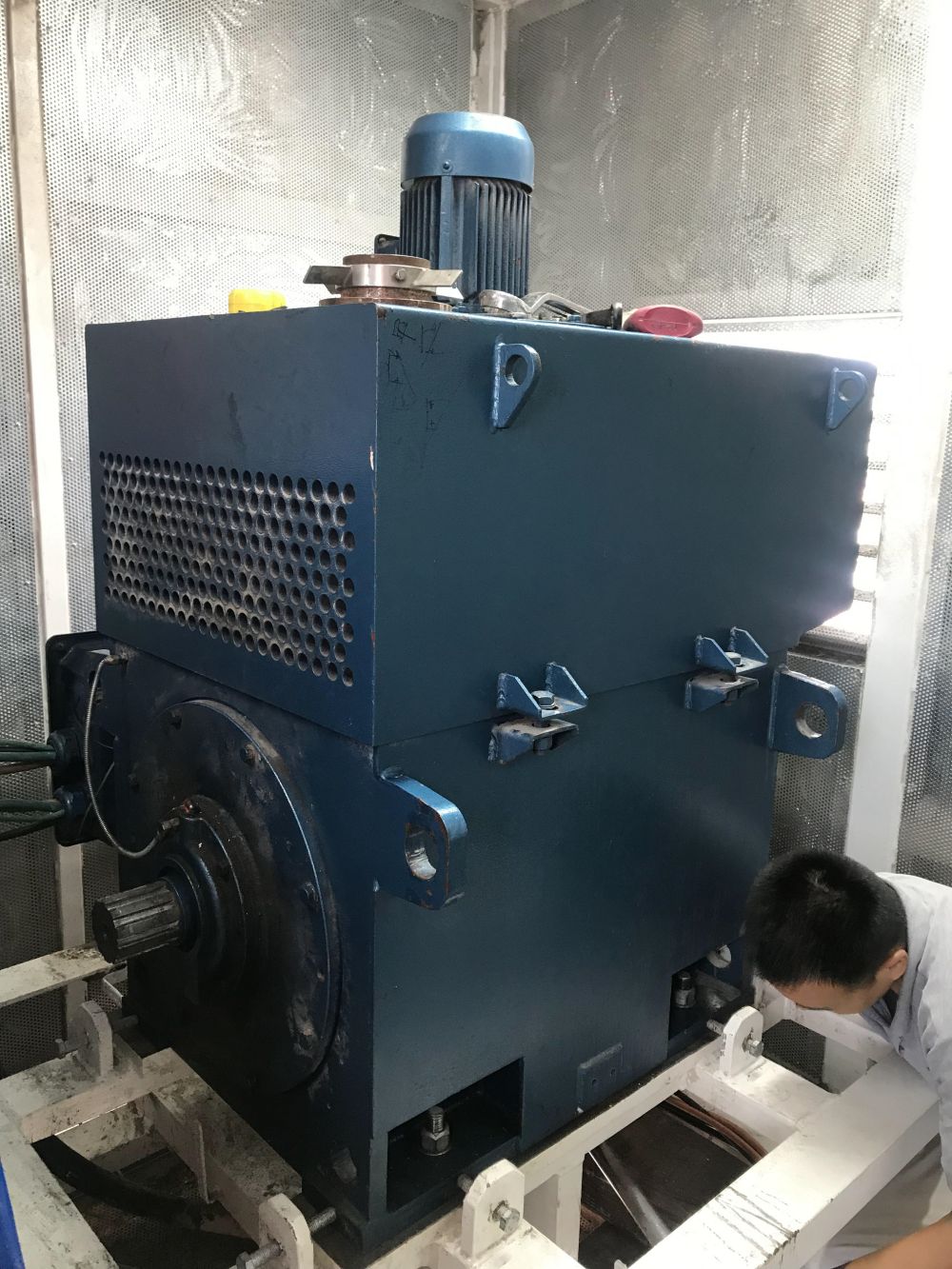

typcx (1)

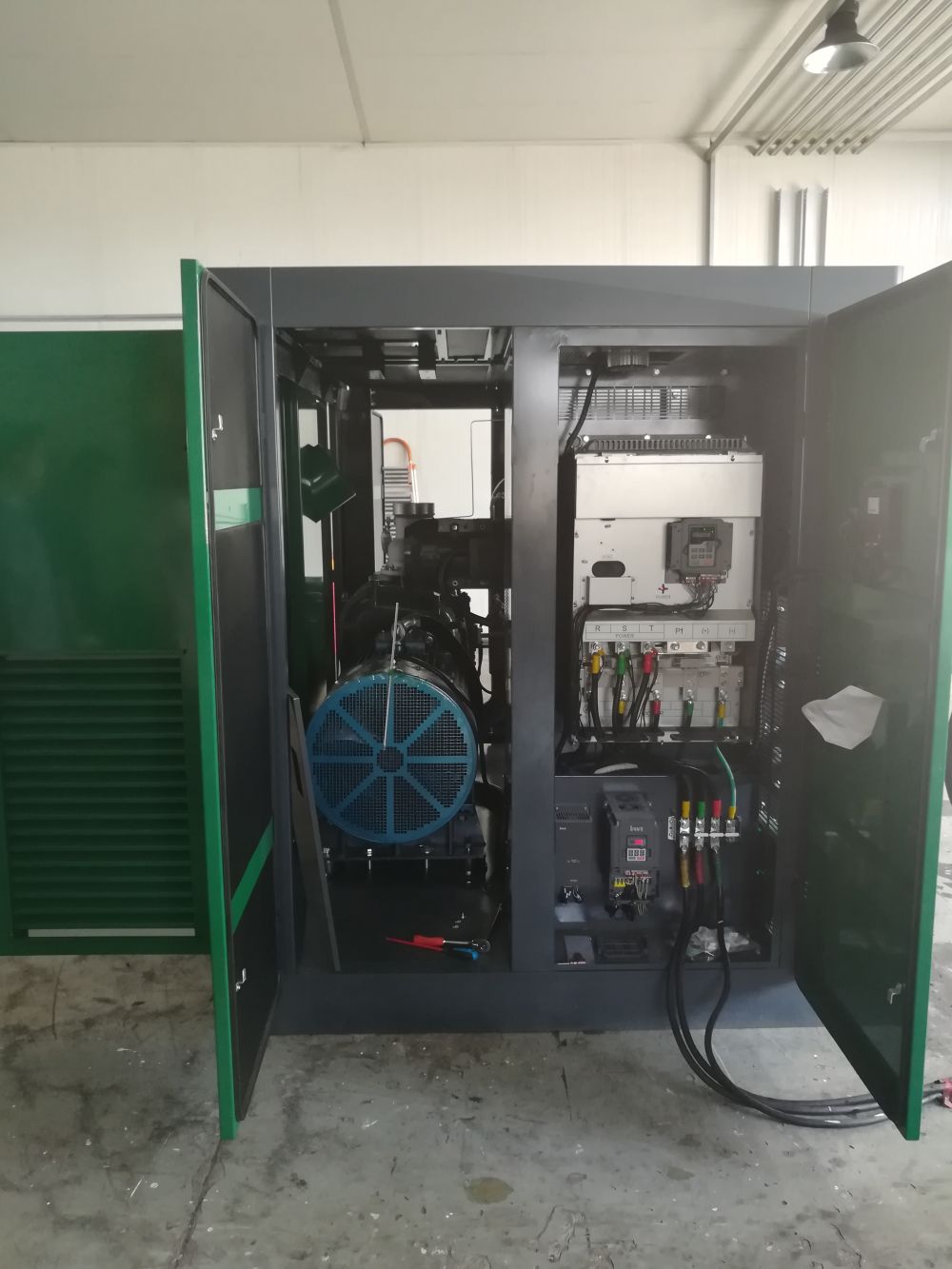

typcx (5)

FAQ

What are the parameters of the motor?
Basic Parameters:
1.Rated parameters, including: voltage, frequency, power, current, speed, efficiency, power factor;
2.Connection: the connection of the stator winding of the motor; Insulation class, protection class, cooling method, ambient temperature, altitude, technical conditions, factory number.
Other parameters:
Technical conditions, dimensions, working duty and structure of the motor and mounting type designation.

What are the suitable starting methods for TYPCX series permanent magnet motors?
1.Starting with matching hydraulic coupling.
2.Supporting magnetic coupling for starting.
3.Equipped with a frequency converter with v/F control function for starting.
4.Supporting frequency converter with vector control function for starting.

Product Parameter

  • download_icon

    TYPCX

Mounting Dimension

  • download_icon

    TYPCX-B3

  • download_icon

    TYPCX-B5

  • download_icon

    TYPCX-B35

  • download_icon

    TYPCX-V1

Outline

  • download_icon

    TYPCX-B3

  • download_icon

    TYPCX-B5

  • download_icon

    TYPCX-B35

  • download_icon

    TYPCX-V1
